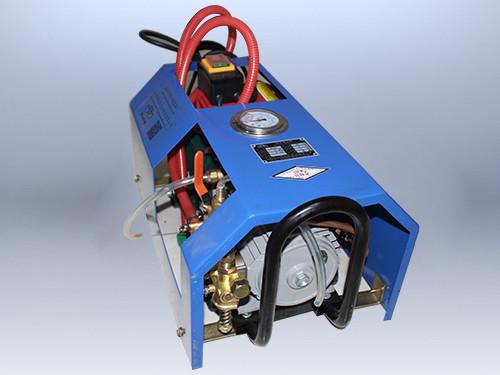

Dedicated high-pressure water pump LB-7X10 high pressure electric pump

I. Structural characteristics:

The special high-pressure water pump specially designed by our factory for the belt vulcanizing machine is a three-cylinder piston pump driven by a single-phase or three-phase motor. Electric water pressure pump.

The plunger of this pump is made of high-tech, and a high-hardness alloy layer is sprayed on the surface of the stainless steel plug body. The medium (water) used must be pure and clean.

The pump is equipped with a pressure-regulating unloading valve. When the pressure of the vulcanizer water pressure plate is filled with a medium, the pressure of the liquid pump suddenly increases beyond the set value, and the liquid pump can automatically release the pressure. (The factory has been set at 3Mpa)

Second, the schematic diagram of the hydraulic pump: (see the figure below)


Third, the main technical parameters:

Rated discharge pressure 4Mpa

Theoretical flow rate 8L / min

Pump speed 2800r / min

Working medium

Matching motor 1.1KW

Three-phase motor 50HZ380V

Lubricant 30 or more No. 40 oil 0.87L

Machine weight 23kg

Dimensions (L × W × H) 560 × 250 × 395mm

Jiangyin Tongxin Vulcanizing Machine Factory (formerly Jiangyin Vulcanizing Machine Factory) is located in the scenic Jiangyin Golden Triangle Development Zone in the north of Wuxi City. It was built in 1984 and has 56 employees and 15 engineers and technicians. 21,000 square meters, fixed assets of 5.08 million yuan, is one of the enterprises affiliated to Jiangyin City Industrial Bureau of Jiangsu Province.

The company's main products are DGLJL type electric heating tape vulcanizing machine, DJSL type electric heating tape water cooling vulcanizing machine and vulcanizing machine, repairer parts. The main technical quality indicators of the vulcanizing machine produced by the company are close to the advanced level in foreign countries.

The products have passed the provincial appraisal. The company implements the IS09001:2015 quality management system standard, and the customers are all over the country. It has been rated as the city's quality products for three consecutive years. And for five consecutive years was rated as the city's contract and keeping promises units. The company has a complete set of special equipment for the production of vulcanizing machines and tooling, fixtures, testing equipment and quality assurance system, welcome customers to visit us.
